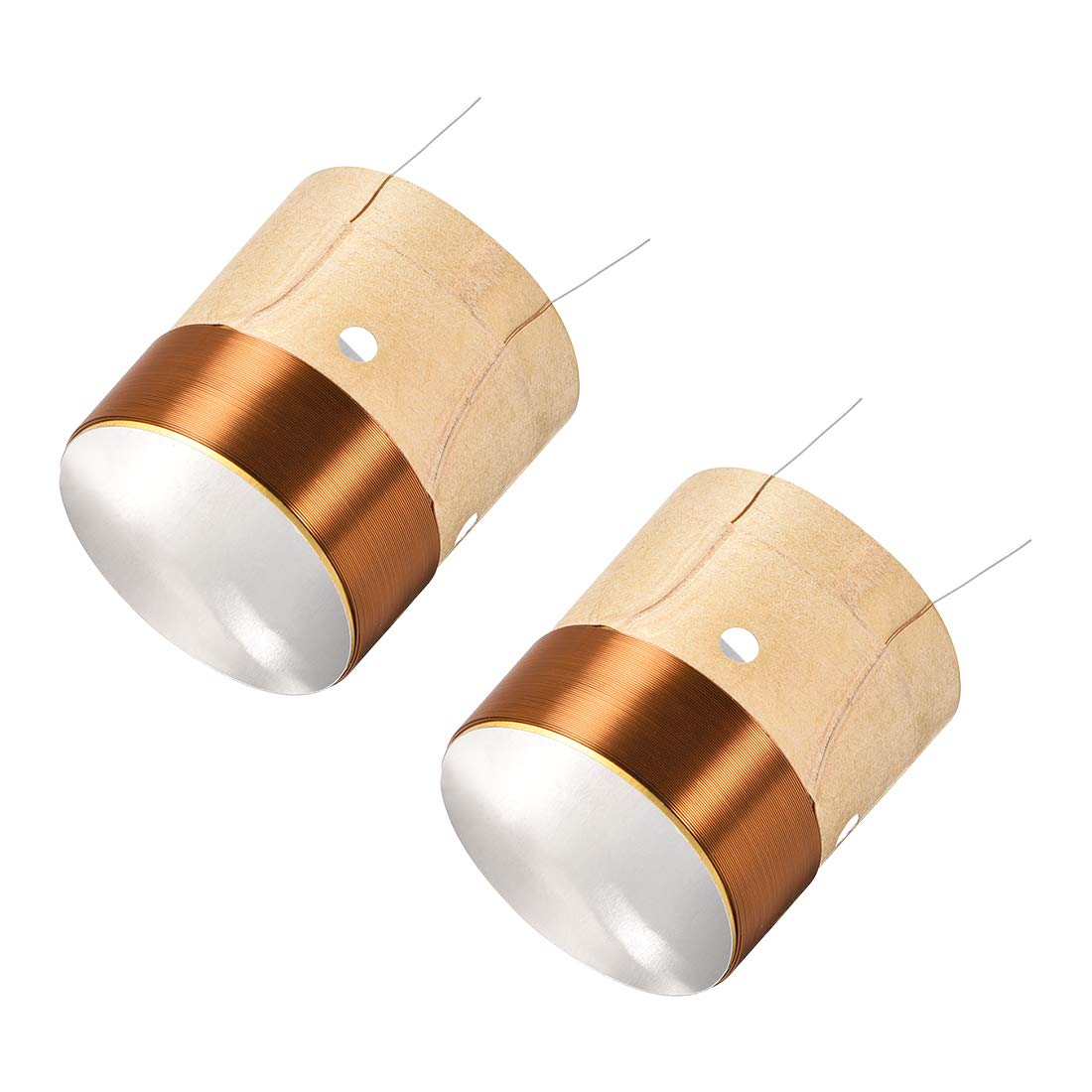

uxcell 2pcs 35.5mm 1.5" Woofer Voice Coil with 2-Layer Round Copper Wire for Bass Speaker Replacement - Perfect for Home Audio Systems & Car Stereo Upgrades

$7.49 $9.99 -25% OFF

Free shipping on all orders over $50

7-15 days international

28 people viewing this product right now!

30-day free returns

Secure checkout

57534294

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

Specification:Voice Coil Diameter: 35.5mm / 1.4 inchTotal Skeleton Height: 40mm / 1.57 inchCopper Wire Height: 12mm / 0.47 inchCoil Material: 2 Layers Round Copper WireSound Film Material: White AluminumPackage Content: 2pcs x Voice CoilDescription:A voice coil (consisting of a former, , and winding) is the coil of wire attached to the of a loudspeaker cone.The item provides the motive force to the cone by the reaction of a magnetic field to the current passing through it.It is also used for voice coil linear motors, which produce a larger force and move a longer distance but work on the same principle.

Features

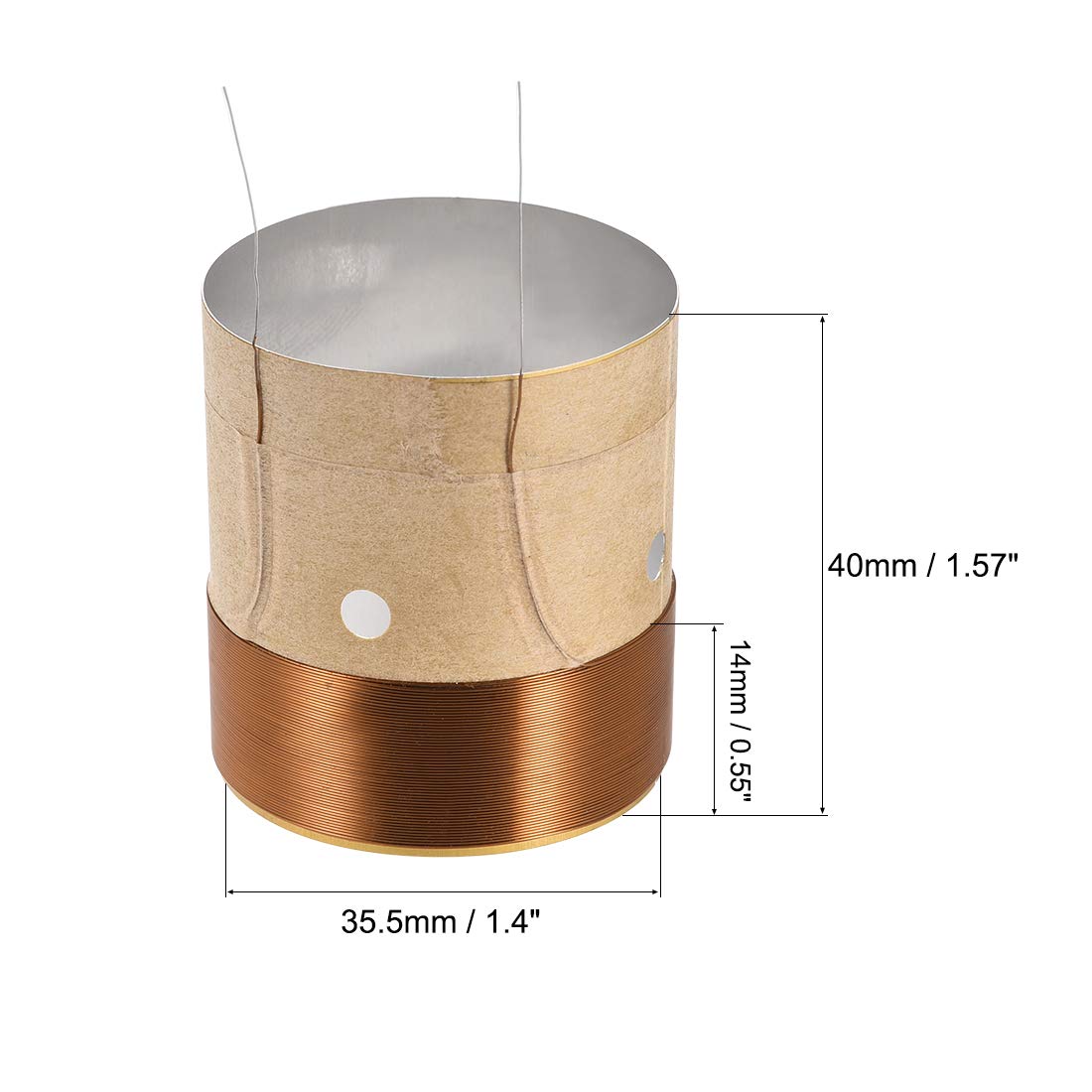

    Voice Coil Diameter 35.5mm / 1.4 inch

    Total Skeleton Height 40mm / 1.57 inch

    Copper Wire Height 12mm / 0.47 inch

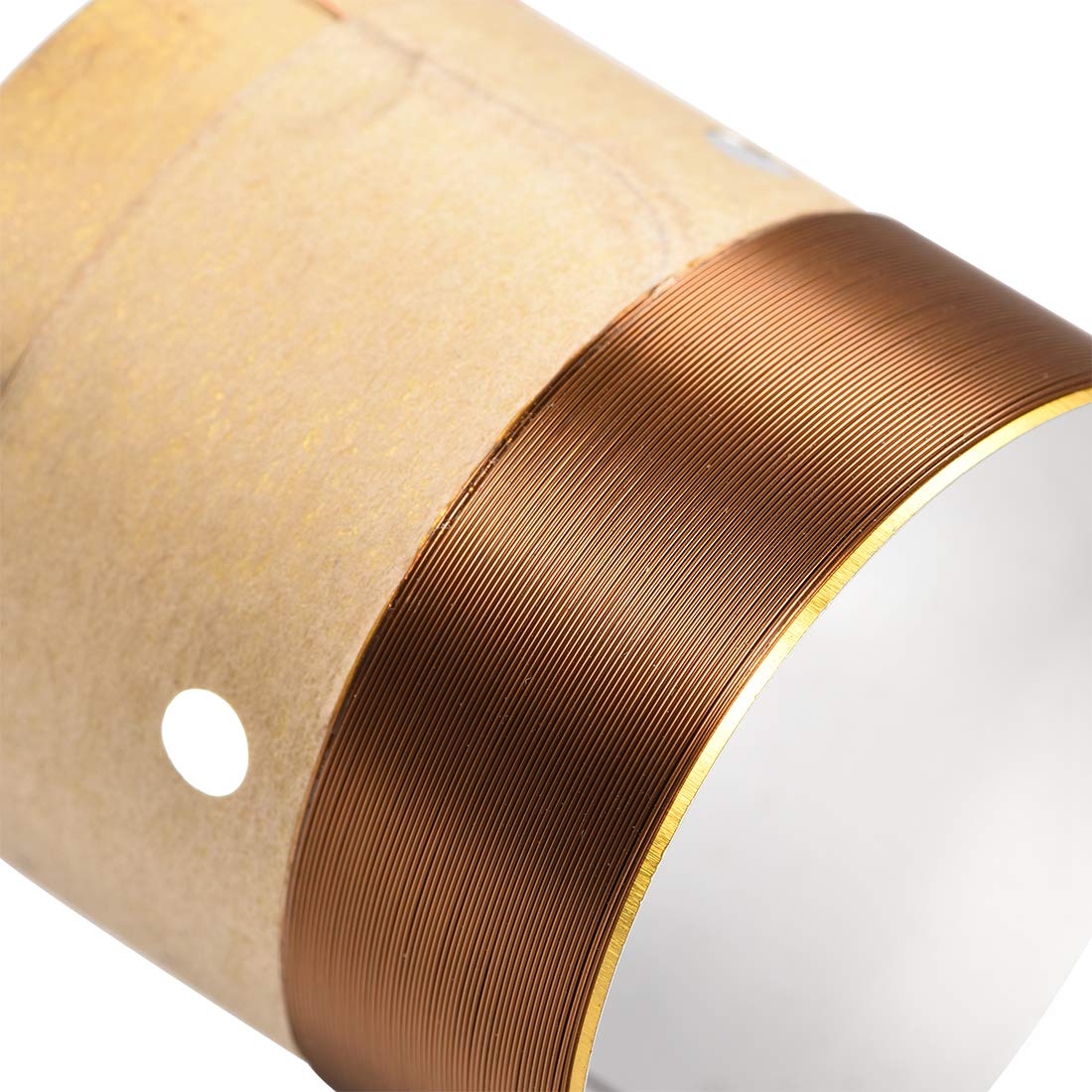

    Coil Material 2 Layers Round Copper Wire; Sound Film Material White Aluminum

    Package Content 2pcs x Voice Coil

Reviews

******
- Verified Buyer
The item appears well made, measures accurately (mechanically and electrically) and met the requirements for my fairly rare Vifa woofers. The problem? Even though they were well packaged in an appropriately sized small cardboard box and inside of a think zip-top bag, one voice coil was moderately oblong. I could have attempted a repair with a mandrel, a vice and some care but I chose to return them and order another set. It is unfortunate because everything looked and felt quality. The packaging was very solid, the build was great and even the Amazon packaging was up to the task of transit. This likely happened when the voice coils were placed inside the plastic bag and before being placed in the protective cardboard box. With the additional layer of packing material and padded envelope it is very likely to arrive without shipping damage.The voice coil didn’t suffer ‘damage’ exactly. It suffered from someone or something pressing too hard on one of the voice coils causing it to go slightly out of round and limit its usability all together. If you want the voice coil to perform well and not rub or buzz the diameter must be consistent and any slight deviation can be a real problem. Trying to bring the coil into spec can be done but it might not remain that way after install.My 3/5-star review is not based on the quality or packaging from the seller. I think the quality was solid and well above average for $12 but the oversight that allowed an out of spec part to make to my door isn't OK.
