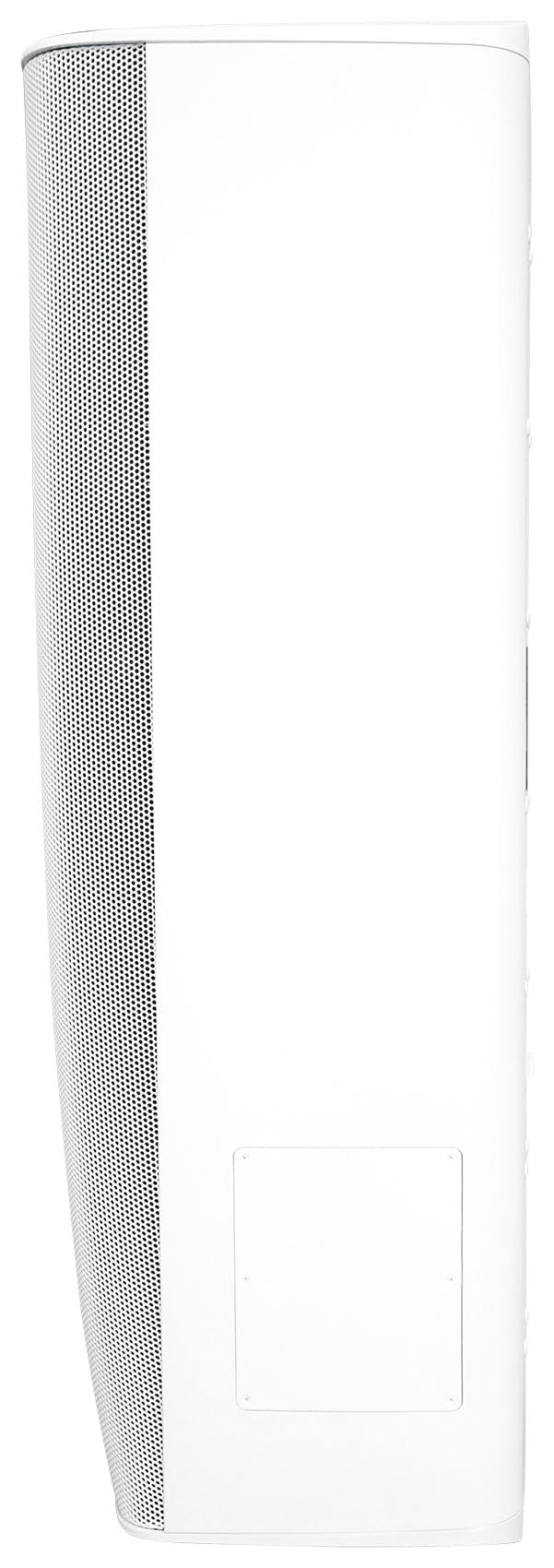

JBL CBT 1000-WH 1500W 2-Way Swivel Wall Mount Line Array Column Speaker - White | Professional PA System for Churches, Auditoriums & Live Events
Free shipping on all orders over $50
7-15 days international
13 people viewing this product right now!
30-day free returns
Secure checkout
76844465
Description
Vertical Coverage Settings: Coverage is effective (frequency response similar) beyond the traditional -6 dB coverage angles. This is especially useful in compensating for differences in listening distances. Figures show both the -6 dB and -12 dB coverage angles (at 3 kHz). Angles are in reference to cabinet aiming axis. Pattern UP Settings: "Point": -6dB @
Features
Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent. Components Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and six (6) 165 mm (6-1/2") high-excursion LF drivers arranged coaxially. Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out of coverage lobing.
Vertical pattern coverage is individually adjustable through a range of four (4) "Pattern Up" angles and four (4) "Pattern Down" coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing. Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room.

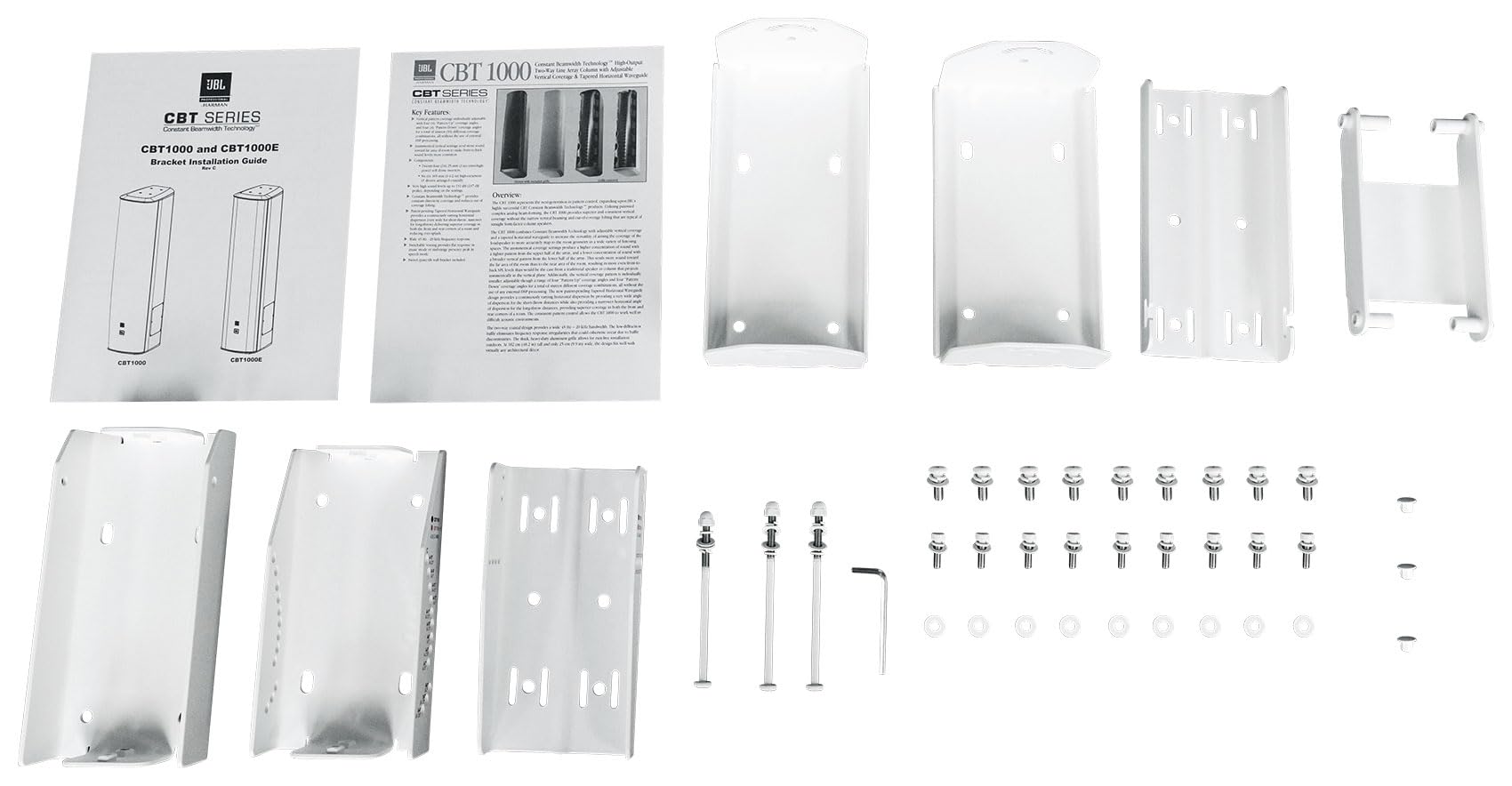

Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40 Hz. Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode. Swivel (pan)/tilt wall bracket included. Specifications Drivers Six (6) 165 mm (6.5 in) LF drivers Twenty-four (24) 25 mm (1 in) HF drivers. Frequency Range (-10dB) 45 Hz - 20 kHz
Sensitivity 102 dB (at highest sensitivity setting "Point" pattern up, "Point" pattern down, "Speech" voicing, in free space); 95 dB (at lowest sensitivity setting "Medium" pattern up,"Downfill" pattern down, "Music" voicing in free space). Impedance 4 ohms (4 ohms above 1 kHz; 8 ohms below 800 Hz). Power Rating 1500 W (6000 W peak), 2 hrs; 1000 W (4000 W peak), 100 hrs. Maximum Input Voltage 65.0 Volts RMS (2 hrs), 130.0 Volts Peak
Maximum SPL (1m) Highest directivity setting ("Point" pattern up, "Point" pattern down) with "Speech" voicing 131 dB continuous average pink noise, 134 dB continuous program, 137 dB Peak
